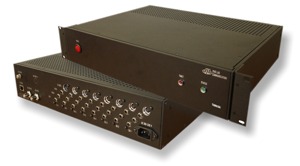

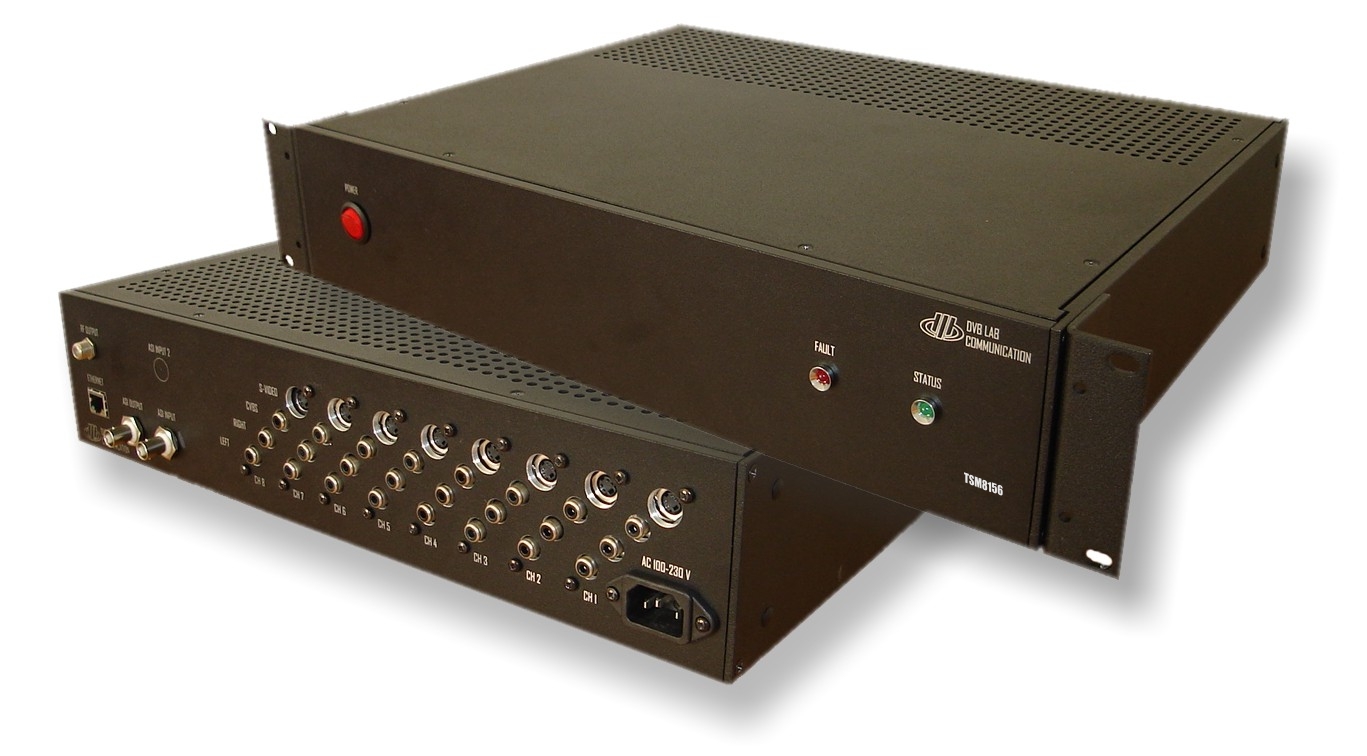

Transport Stream Multiplexer TSM8156

with up to 8 full-featured MPEG-2 video/audio encoders, providing all-in-one solution to create one transport stream output signal in QPSK/ QAM/COFDM (modulation type by request) or with one ASI output with a bitrate up to 70 Mbit/s.

Key Features

up to 8 built-in professional MPEG-2 video/audio encoders:

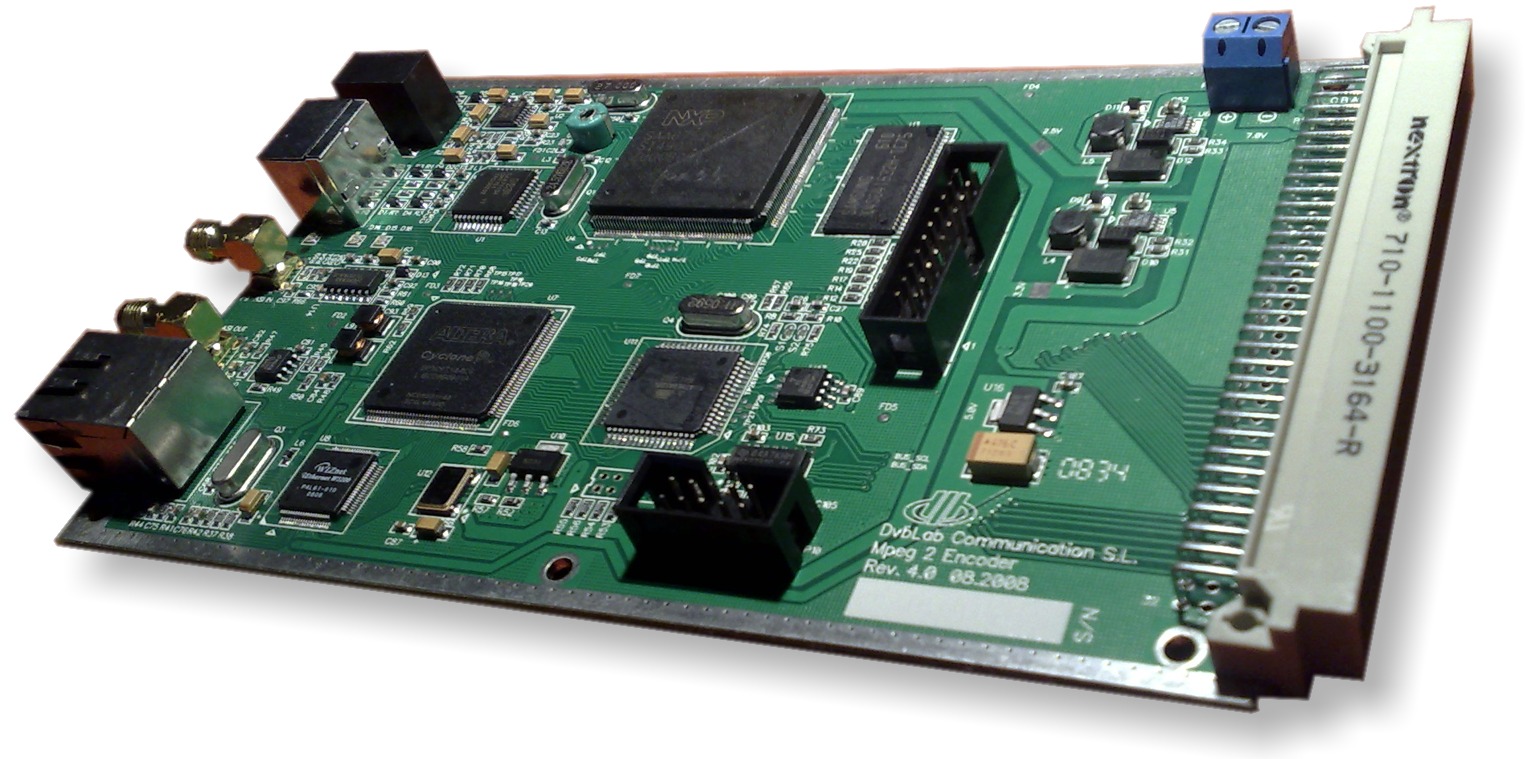

MPEG-2 Encoder is a professional real-time video/audio encoder fully compatible with DVB standard:

• ISO/IEC 13818 MPEG-2 MP@ML and MP@ 720X576 (PAL D1)
  video compliant
• Output TS bit rate 1.5-15Mb/s programmable
• CVBS, S-video input supported, format video D1, 2/3D1, 1/2D1 supported
• MPEG Layer II audio encoding digital audio 44.1 KHz, 48 KHz
  Stereo
• PMT/Video/Audio/PCR PID setting supported
• Program / Service provider name setting supported
• PMT/PCR/VIDEO/AUDIO PID setting supported

built-in Modulator QPSK/ QAM/COFDM /  modulation type
by request

QPSK  Broadcast Satellite Modulator for any professional and broadcast applications:
ISO/EN 301210 / EN 300421
L-band output 950MHz - 2150MHz programmable
Bit rate up to 50Mbit/sec, max 30msymb
Fec  -  1/2, 2/3, 3/4, 5/6, 7/8
Output  110dBuV/-20dB programmable
High Stability 48 MHz internal Ref oscillator
1080 Mhz @ -50dB L-Band monitoring noise output.
Compatible with any existing Up-Converter

QAM Cable Modulator  for any professional and
broadcast applications:
Full-Featured DVB-C modulator Compliant to EN 300 429
VHF/UHF spectrum coverage
QАМ  16/32/64/128/256
Output  90dBuV/-20dB programmable
Outstanding MER ( Modulation Error Ratio ) >47Db

ASI Input, ASI Output Interfaces

built-in encryption module, simulcrypt compatible encryptor:
Conditional Access CAS scrambling of outgoing programs

Advanced Multiplexing features to add / drop / generate / inject /,
supporting the DVB Standards

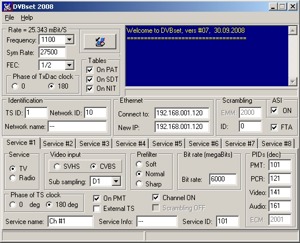

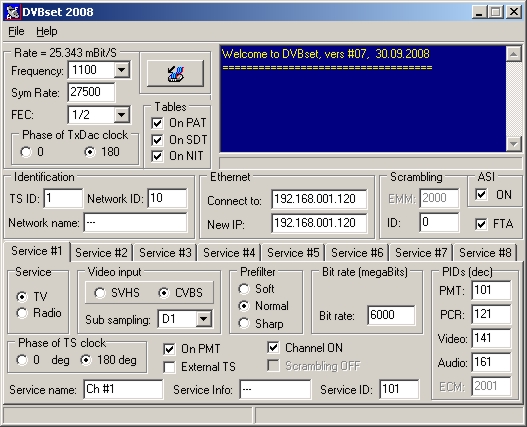

Simple and reliable: Ethernet user interface to control Mux operations:


User interface

EPG / Teletext insertion

Manually insertion of user's text file to any program into
EPG/Teletext data.

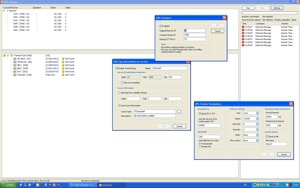

EPG server
