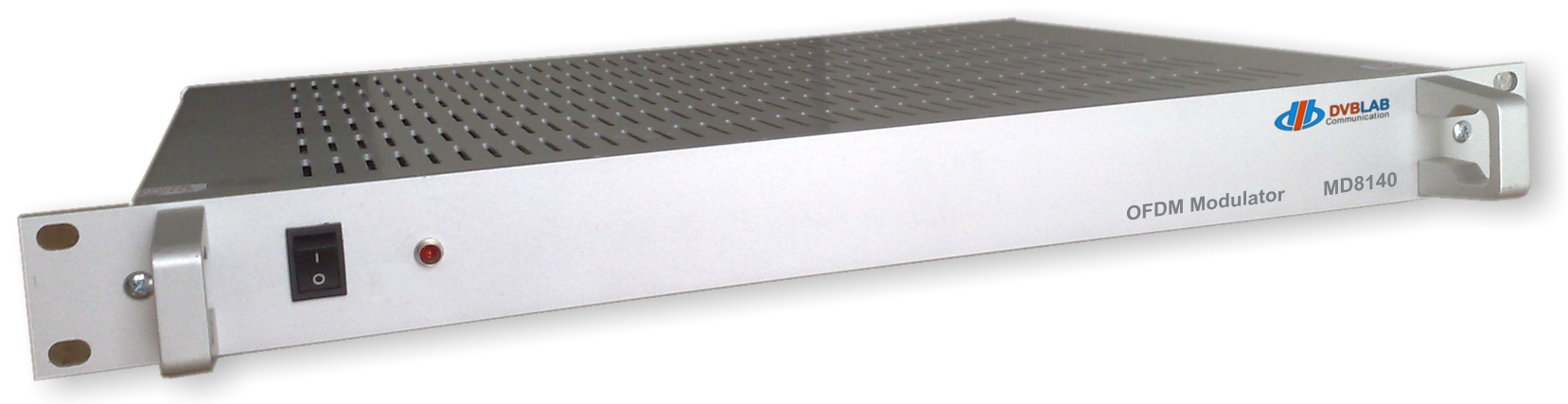

OFDM  Broadcast Terrestrial Modulator
for any professional and broadcast applications

One ASI Input Interface.
2/4 - ASI Input Interface - option is available.
Up to 4 independent OFDM Modulators in 1U 19" rack mounting box.

• DVB-T EB 300 744 modulation standard
• 7/8 MHz Bandwidths
• Baseband VHF/UHF Output programmable
• QPSK, 16-QAM, 64-QAM Constellations
• 2K, 8K IFFT Carriers Supported
• 1/4, 1/8, 1/16, 1/32 Guard intervals
• Code rates: 1/2, 2/3, 3/4, 5/6, 7/8
• Outstanding MER ( Modulation Error Ratio ) >47Db
• Output  90dBuV/-20dB programmable
