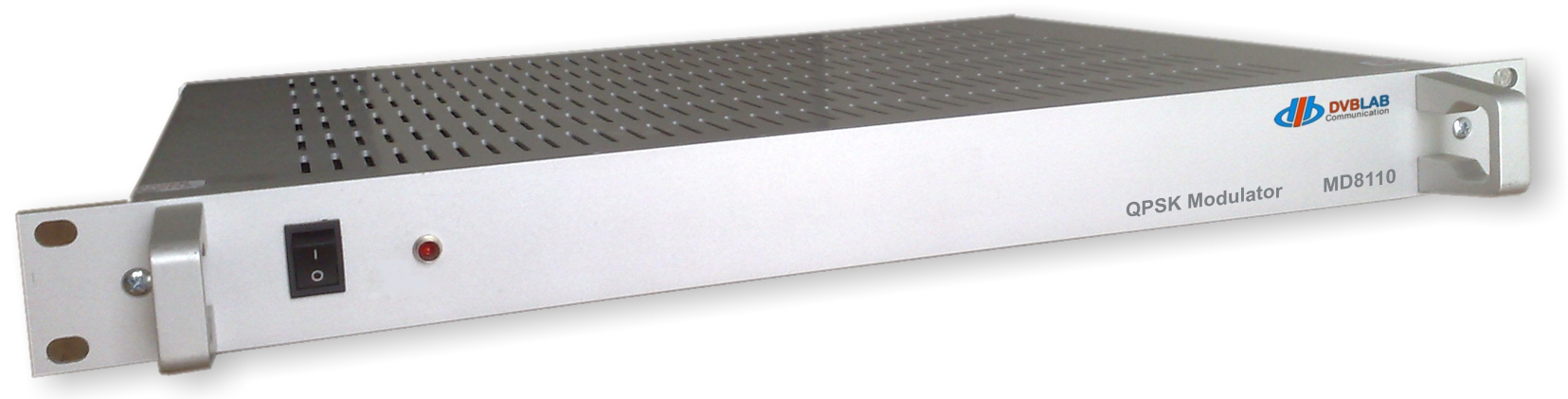

QPSK  Broadcast Satellite Modulator
for any professional and broadcast applications.

One ASI Input Interface.
2/4 - ASI Input Interface - option is available.
Up to 4 independent QPSK Modulators in 1U 19" rack mounting box.

• QPSK Modulation ISO/EN 301210 / EN 300421
• L-band output 950MHz - 2150MHz programmable
• Bit rate : up to 50Mbit/sec, max 30msymb
• Fec 1/2, 2/3, 3/4, 5/6, 7/8
• Output  110dBuV/-20dB programmable
• High Stability 48 MHz internal Ref oscillator
• 1080 Mhz @ -50dB L-Band monitoring noise output
• Compatible with any existing Up-Converter
